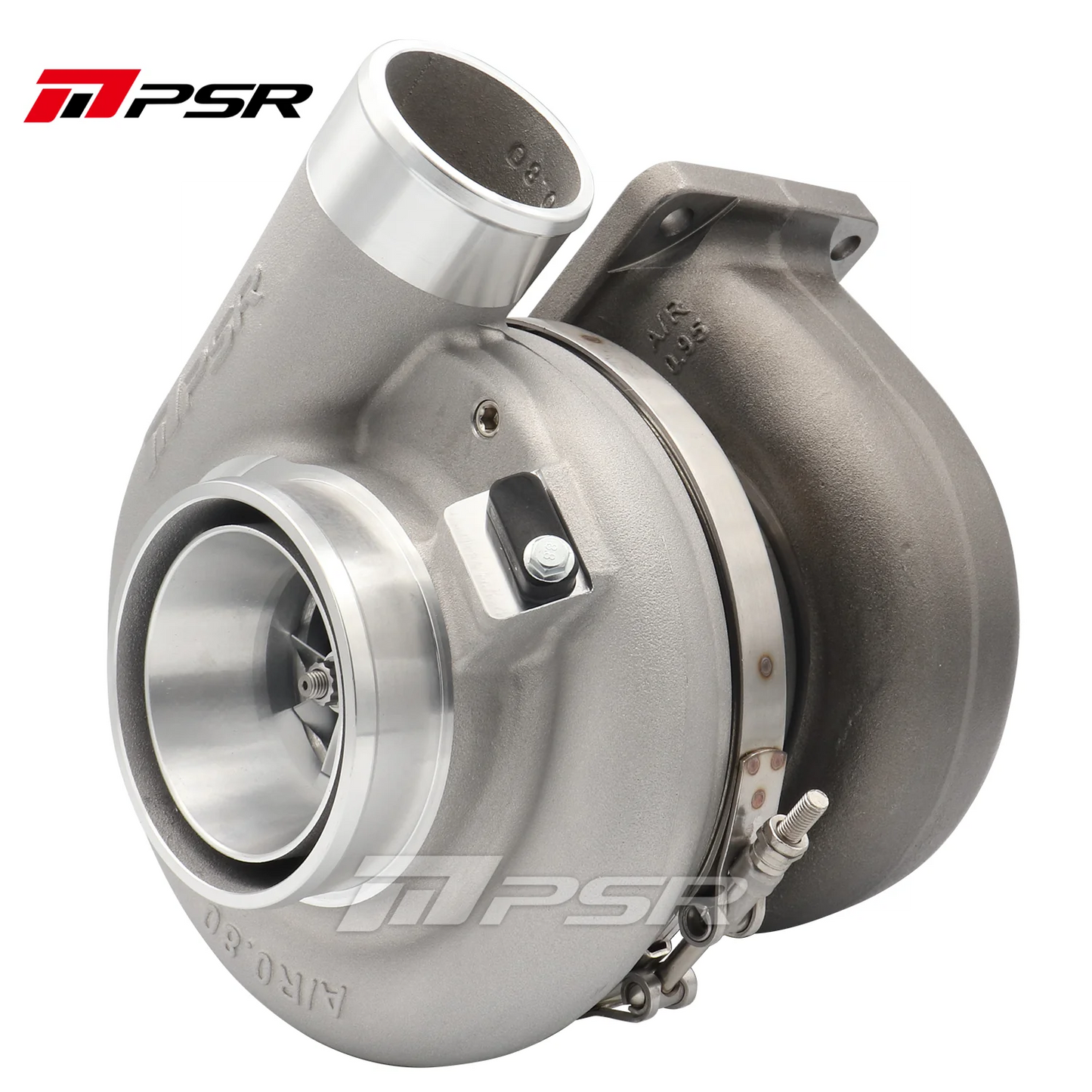

PSR 7170G Dual Ball Bearing 1150HP 71mm Turbo

Also Referred to as G40-1150

• Dual ceramic ball bearing with steel cage provides optimal turbo response &
  better durability by reducing the shaft-motion
• 71mm inducer 10 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
• 9 Blade PTG-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
• Water fittings included with the super core
• 2 Options in Turbine Housing
• HP rated at 1150HP at the flywheel
• Suitable engine size: 2.0-6.0L
• Compressor Wheel: 71*88mm
• Turbine Wheel: 77*70mm
• Compressor Inlet: 4″ Hose
• Compressor Outlet: 2.5″ V-Band
• Turbine Inlet: T4 divided
• Turbine Outlet: 4″ V-Band
• Water Ports: -6AN
• Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange )
• Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
• 2 Options in Turbine Housing: T4(Divided) 0.95 A/R, 1.06 A/R
• Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp
