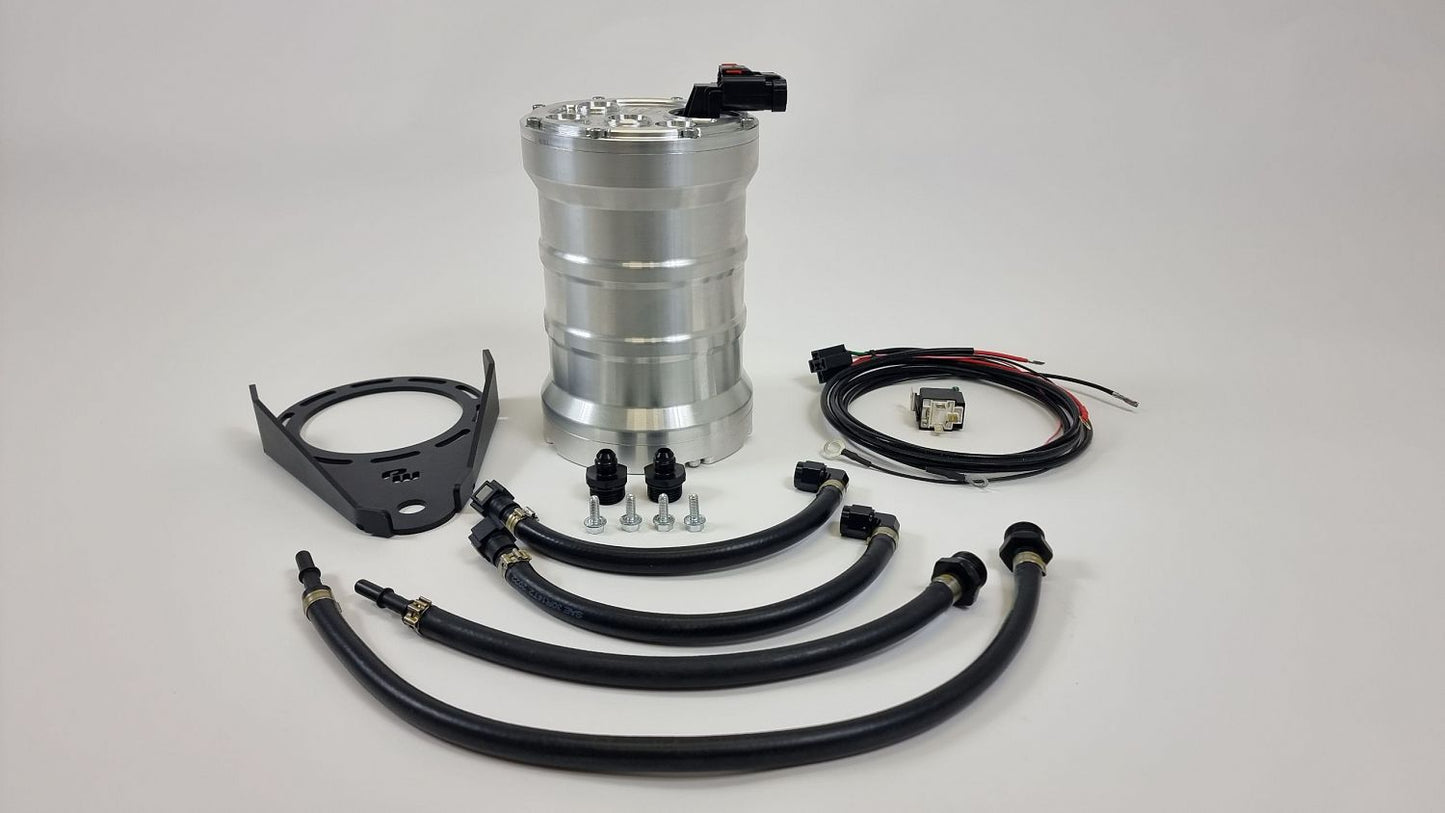

NEW Process West FG XR6 Turbo fuel anti-surge primary system

Our new generation 3 fuel anti-surge system is the ultimate in fuel delivery for your turbocharged Falcon.

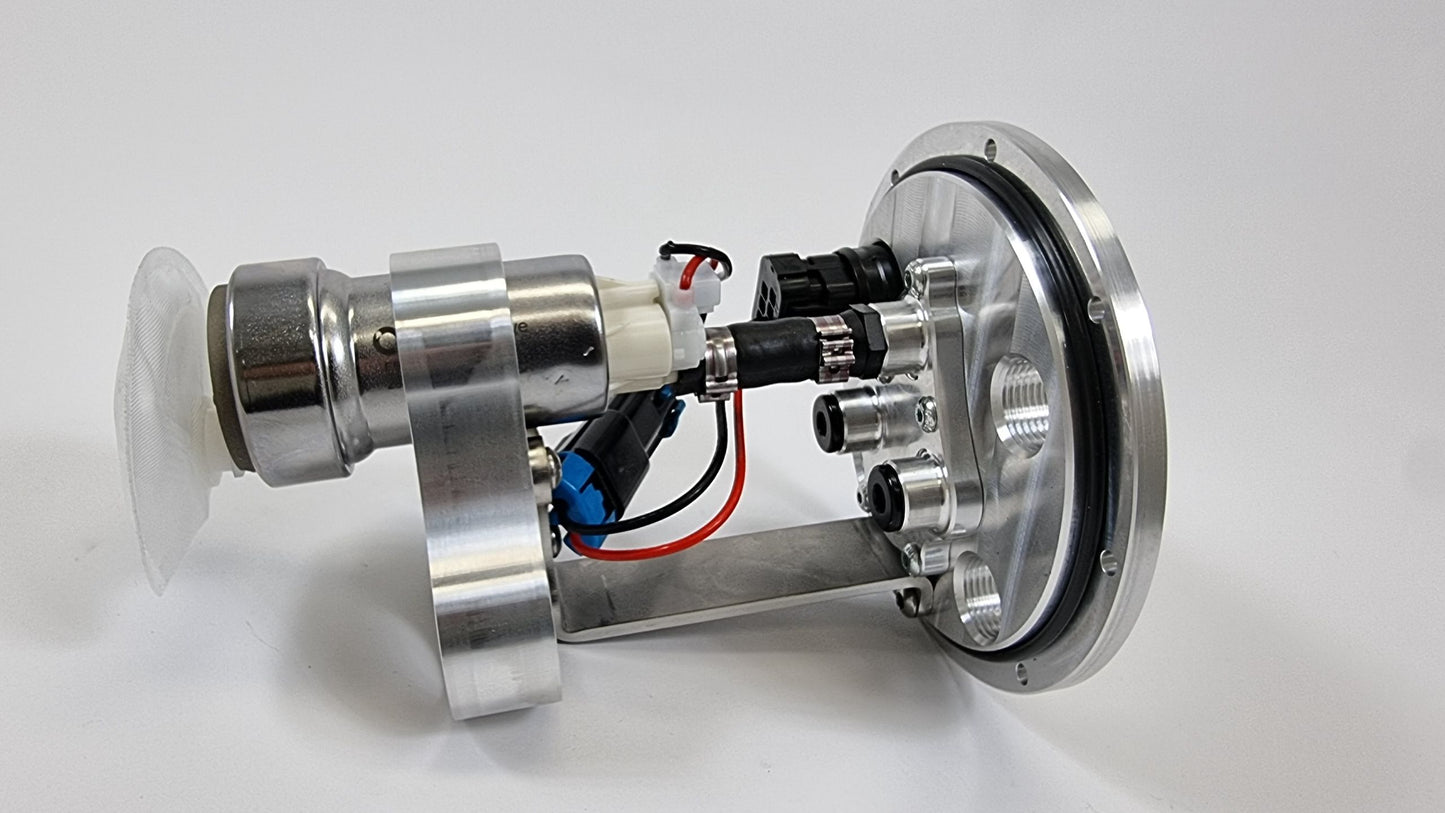

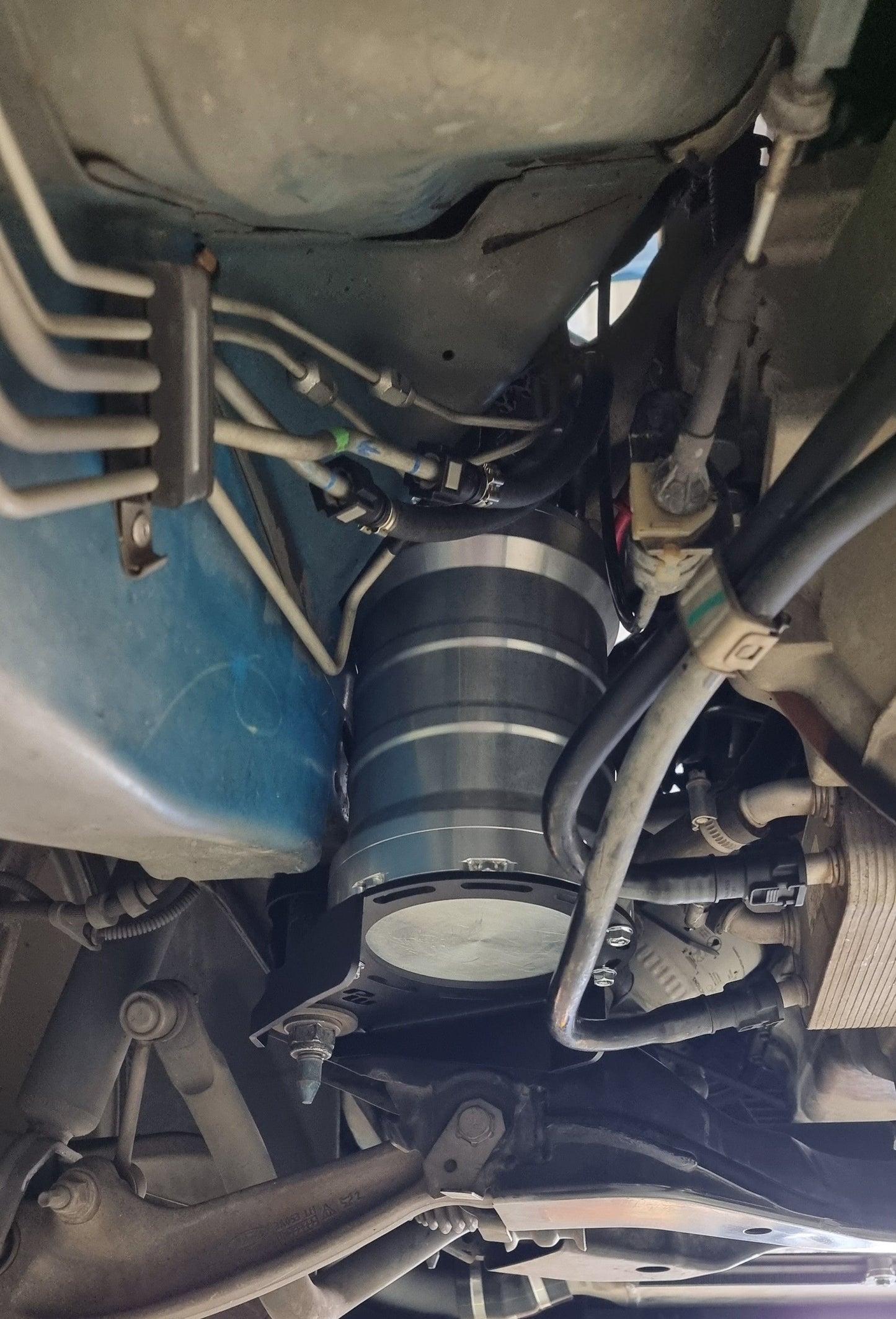

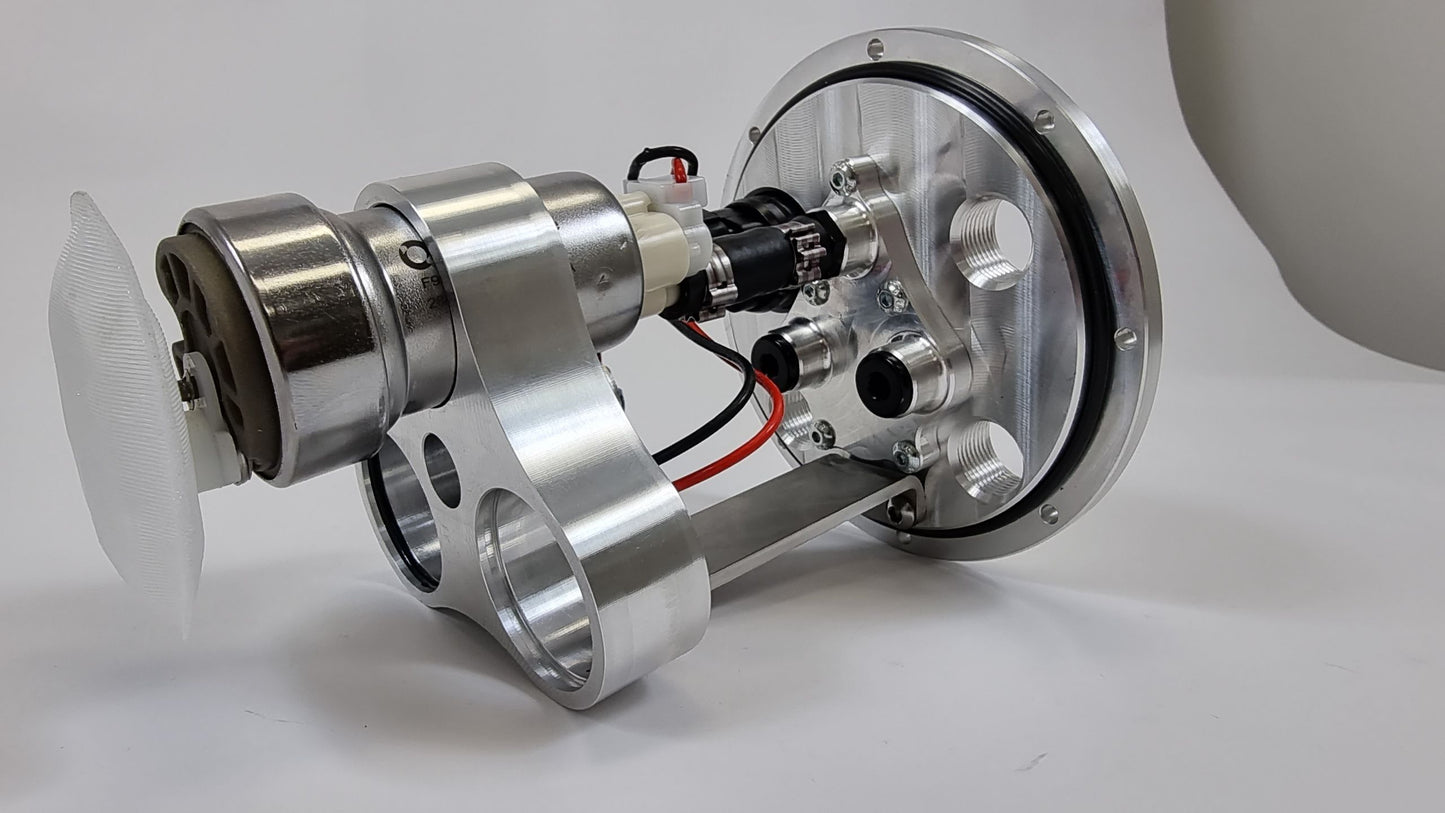

The new system sees the pump (or pumps) mounted internally to an externally mounted anti-surge vessel. The vessel is mounted to the chassis rail just like the original Process West anti-surge system... this is not an in-tank system.

One of the main objectives when designing the system was making sure the system was easily upgradable when the need for higher fuel flows is required. The "basic" system comes installed with 1 x Walbro 460LPH pump/wiring harness and is a simple plug and play option.

A second or third Walbro 460 can be easily added to the system either at the time of purchase or later down the track when the demand for greater fuel supply is required. We have a package that allows the second pump or third  to be installed along with a Turbosmart FPR8 fuel pressure regulator and all of the necessary hardware for easy installation with the factory fuel rail.

Alternatively if you have an aftermarket dual entry fuel rail we have a complete fitting kit including Turbosmart FPR8 regulator.

Assembling a fuel delivery system to suit your requirements

The "basic" single Walbro 460 system will satisfy the fuel delivery requirements of 90% of applications. This single pump system will support 680 rear wheel kilowatts and is a simple plug and play system.

When a second pump is added to the system the flow is greatly increased and the factory fuel pressure regulator is unable to control fuel pressure. At this point we need to address fuel pressure control.

What we have done is put together a package that allows the factory fuel rail to stay in place and add a Turbosmart FPR8 fuel pressure regulator to the system. This package is known as the Process West Stage 1 Fitting Kit.

The stage 1 fitting kit provides a factory fuel pressure regulator by-pass plug, a Turbosmart FPR8 regulator + all of the fittings to complete the installation.

If you have an aftermarket dual entry fuel rail then we have the Process West Stage 2 Fitting Kit. The stage 2 fitting kit utilises -8 hose size throughout, AN Speedflow fittings and the Turbosmart FPR8 fuel pressure regulator.
