HSE Barra High Volume Oil Pump

Information

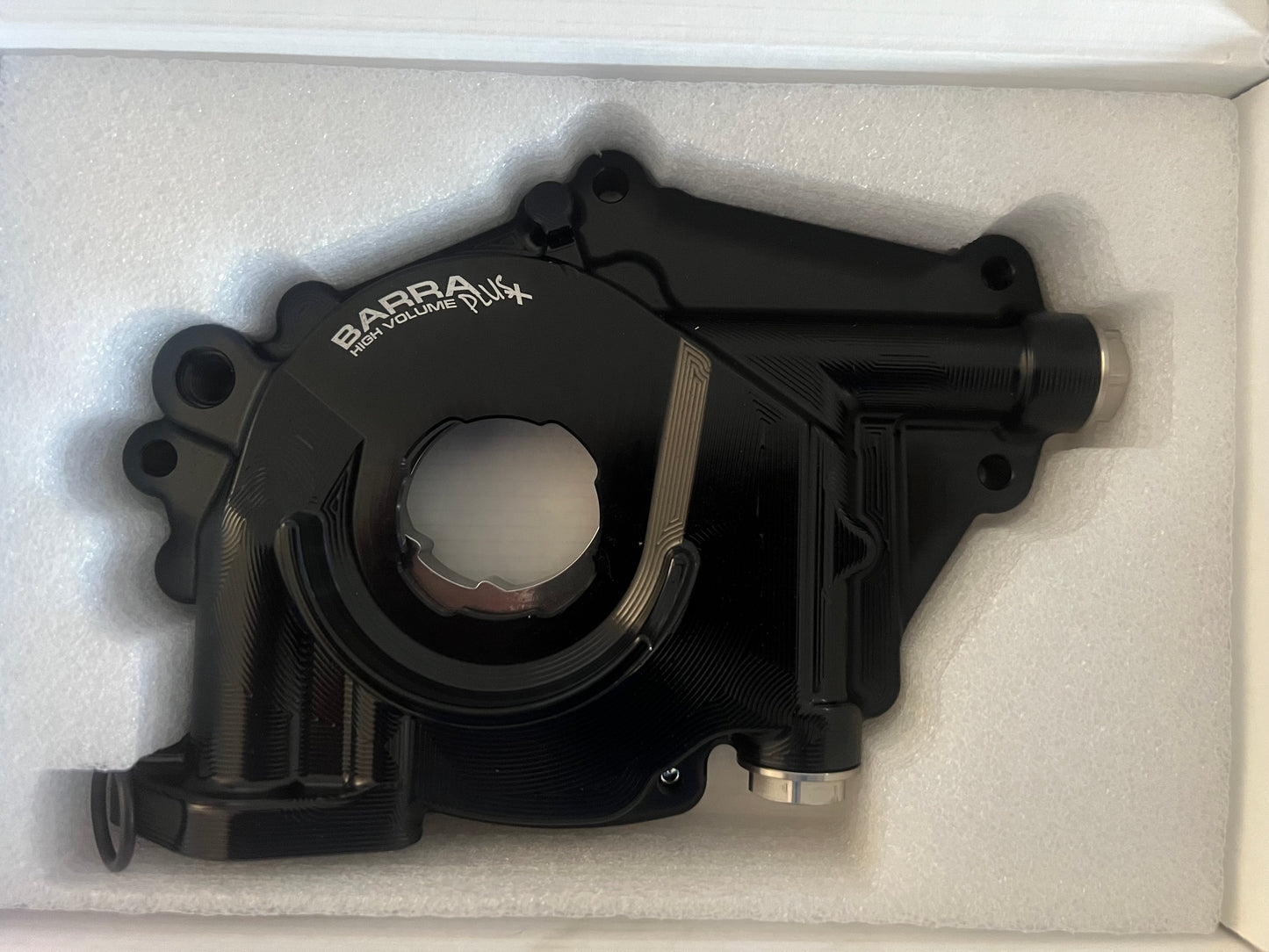

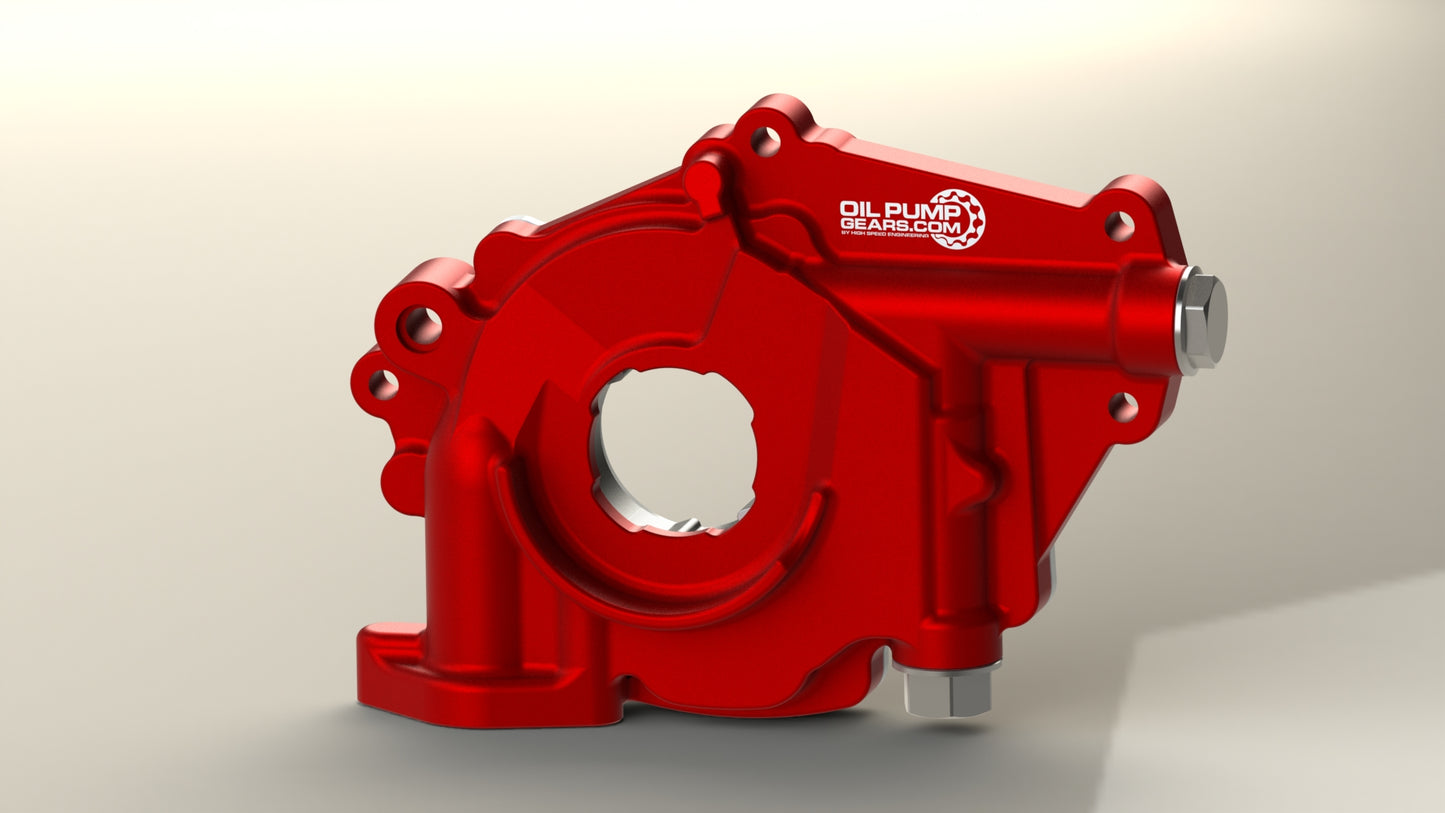

High Speed Engineering (HSE) has developed a billet version of the Oil Pump to suit Ford Barra engines. This HSE pump is a true anodized BILLET aluminium oil pump, not a machined casting. Based on the OEM version, we have made some changes after consultation with various engine builders around the country.

This pump requires a special oil pump gear made by HSE, specifically for these oil pumps. These pumps have been designed to provide the same flow rate as OEM but are made from a stronger gear for those pushing serious horsepower.

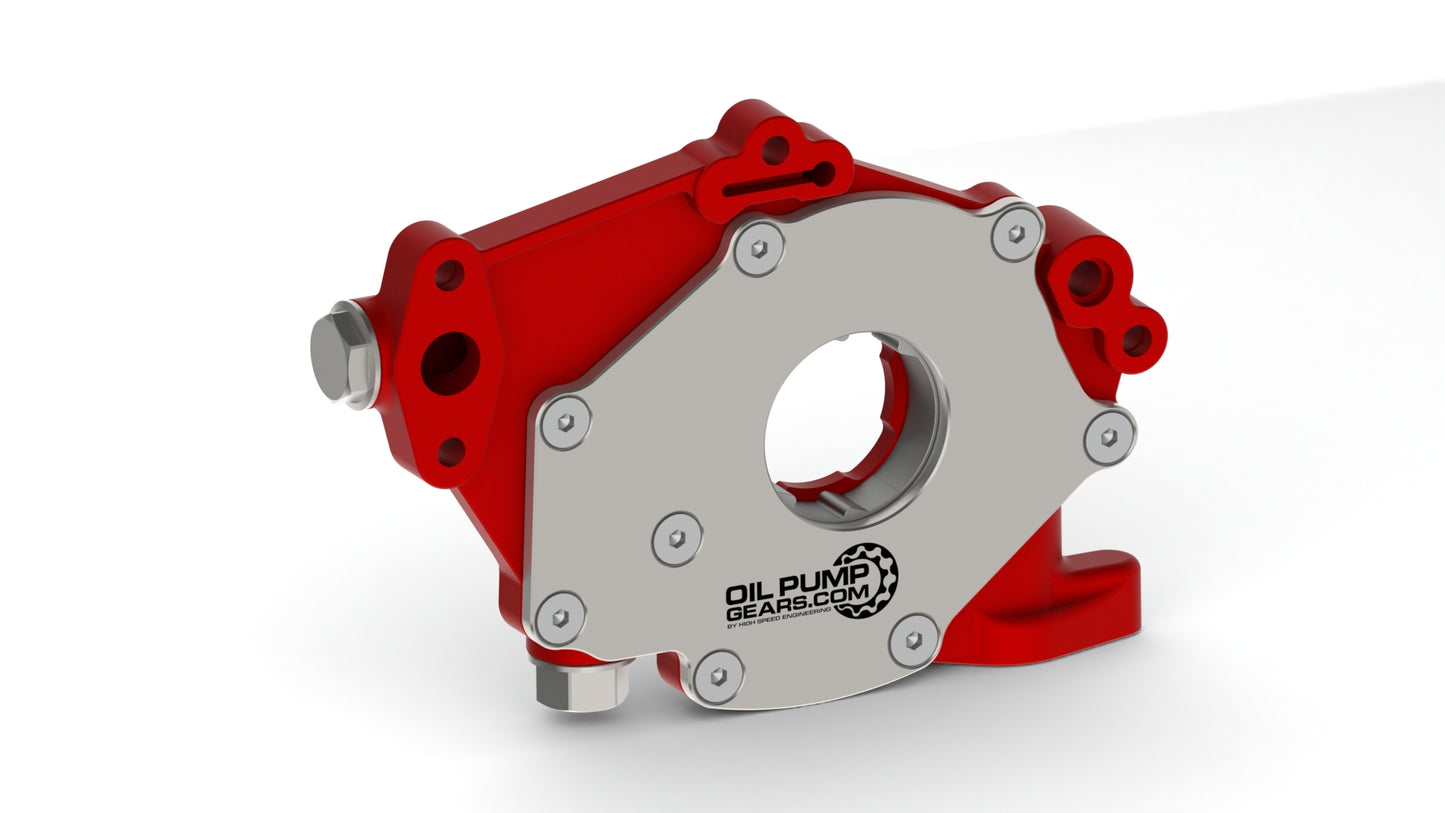

Rear cover flex on OEM pumps have always been an issue. The aluminium cover plates flex and allow oil to escape back into the sump at high RPM. HSE Billet Oil Pumps come with a steel backing plate, eliminating this problem and ensuring that good pressure is maintained even at high RPM.

HSE has done extensive bench testing on these pumps, with specialised testing equipment, to allow us to get real pressure readings on our pumps vs OEM. We now have pressure figures from 750-8000 RPM. There is no guess work – you can see exactly how these pumps perform compared to OEM pumps.
